MCP Setup - ThriveStack

Server URL

Every platform uses the same URL. The server is available to existing ThriveStack customers.

Server URL

https://api.app.thrivestack.ai/mcp

Streamable HTTP (Remote) OAuth 2.1 Personal Access Token

Authentication options

The server supports two authentication methods. Choose based on what your client supports.

OAuth

Recommended

The first connection sends you to ThriveStack to sign in and allow access. Your session persists across conversations.

Best for: Claude, Claude Code, Cursor, VS Code and other clients that support MCP OAuth.

Personal Access Token

Alternative

A long-lived token tied to your ThriveStack account, sent as an Authorization: Bearer header. It acts as you across every brand your account can access.

Best for: clients without OAuth support (such as Windsurf and Gemini CLI), headless setups and CI.

Connect your client

Choose your AI tool. Each guide uses OAuth where your client supports it.

ThriveStack isn’t in Claude’s connector directory yet, so you add it as a custom connector using the server URL above. For more detail, see Claude’s guide to custom connectors.

Connect with OAuth Recommended

Open the connector menu

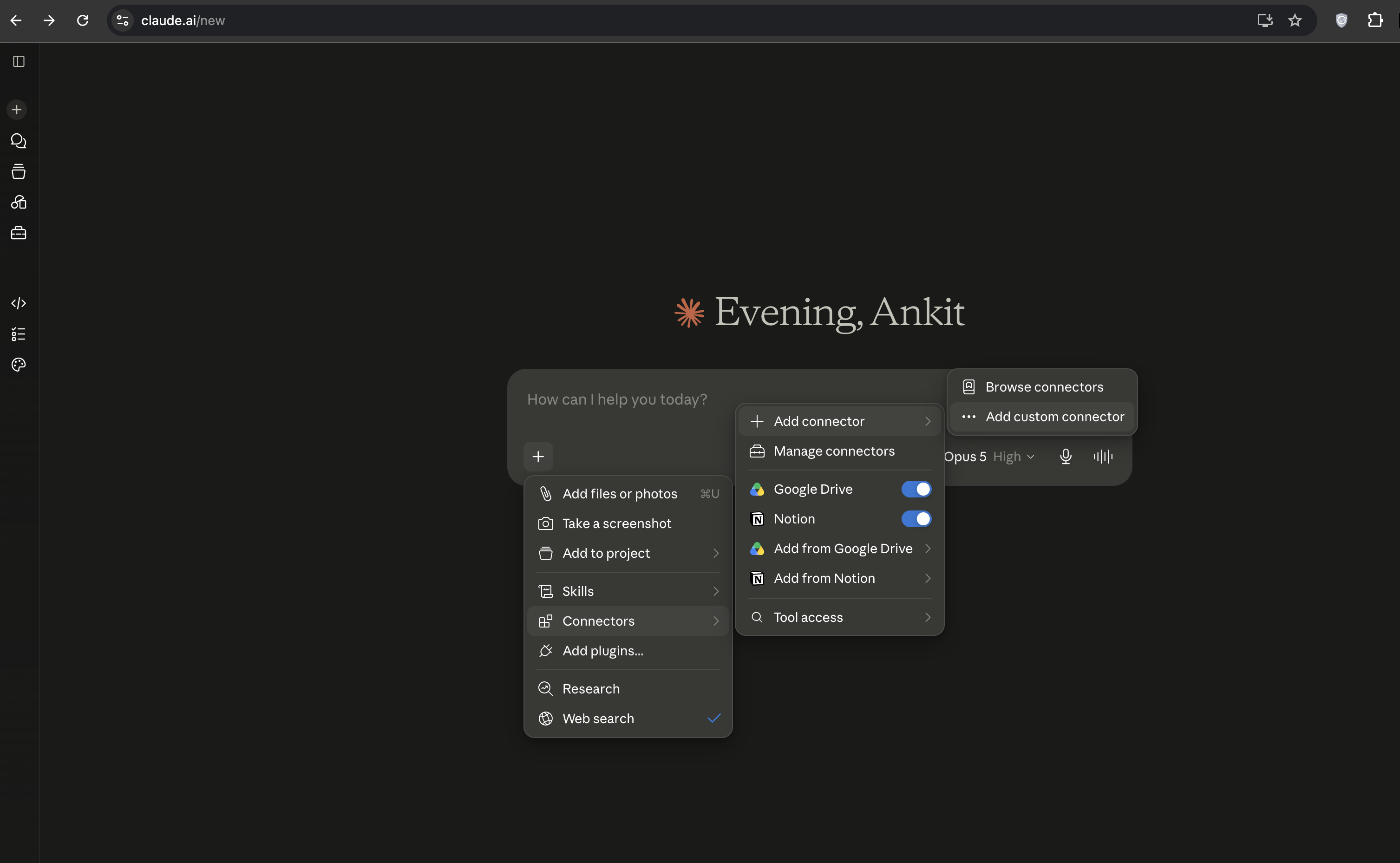

In Claude (the desktop app or claude.ai), click + in the message box, then choose Add connector → Add custom connector. You can also manage connectors from Settings (or Customize) → Connectors.

Click +, then Add connector → Add custom connector.

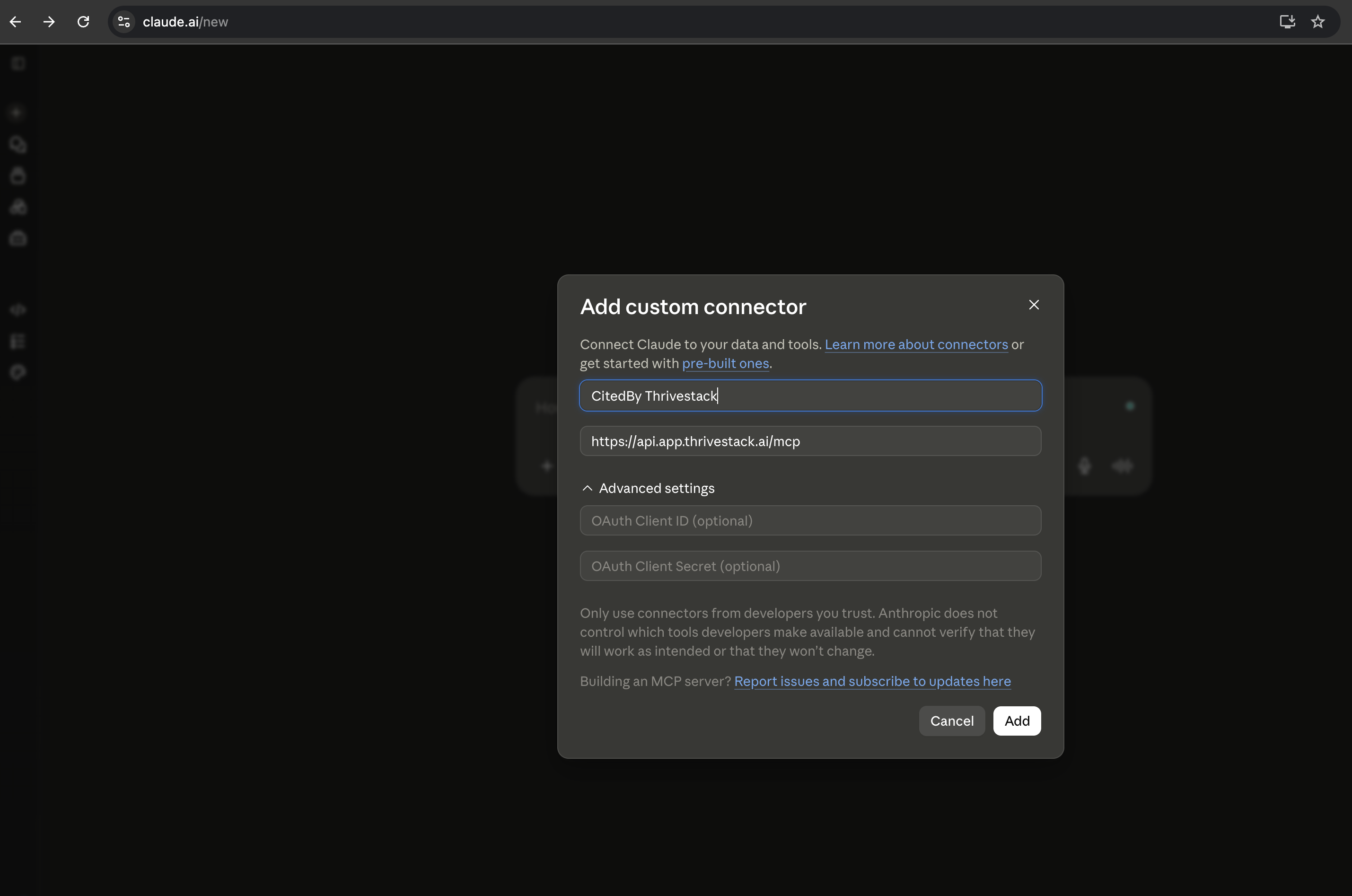

Enter the server details

Enter a name and the server URL, then click Continue:
- Name: ThriveStack (or any name you like)
- MCP server URL: https://api.app.thrivestack.ai/mcp
The name is only a label in your connectors list.
Sign in and allow access

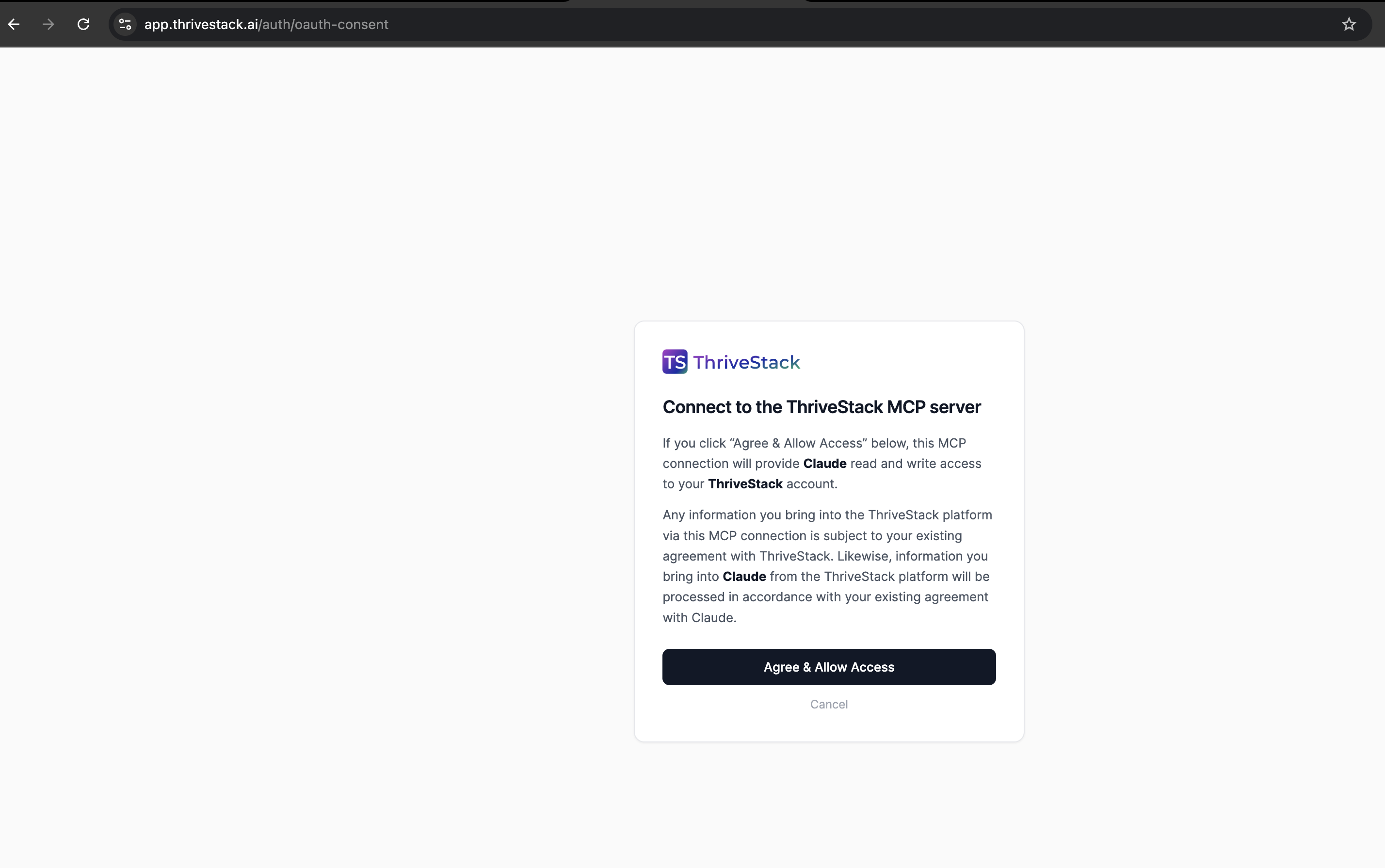

Claude opens ThriveStack in your browser. Sign in, review the permissions, and click Allow access. The consent screen shows which app is asking and what it can do.

ThriveStack’s consent screen.
Start asking questions

You’re sent back to Claude and ThriveStack appears in your connectors. Try the question under Verify your connection.

Using a Claude workspace? Only workspace admins can add custom connectors. If you can’t, ask your admin.

Use a Personal Access Token instead

Add this to ~/Library/Application Support/Claude/claude_desktop_config.json, replacing YOUR_PAT_TOKEN with your token. Need a token?

claude_desktop_config.json

{
  "mcpServers": {
    "thrivestack": {
      "command": "npx",
      "args": [
        "-y", "mcp-remote", "https://api.app.thrivestack.ai/mcp",
        "--header", "Authorization: Bearer YOUR_PAT_TOKEN"
      ]
    }
  }
}

For general MCP setup, see the Claude Code MCP documentation.

Connect with OAuth Recommended

Add the server

Run this once:

Shell

claude mcp add --transport http --scope user Thrivestack "https://api.app.thrivestack.ai/mcp"

Sign in

Start claude, run /mcp, and select ThriveStack to sign in and allow access.

Use a Personal Access Token instead

Replace YOUR_PAT_TOKEN with your token:

Shell

claude mcp add --transport http --scope user Thrivestack "https://api.app.thrivestack.ai/mcp" --header "Authorization: Bearer YOUR_PAT_TOKEN"

Then start Claude Code:

Shell

claude

For general MCP setup, see Cursor’s MCP documentation.

Connect with OAuth Recommended

Open MCP settings

Go to Cursor Settings → Tools & Integrations → MCP.

Add the server

Click Add Custom MCP and paste this configuration:

JSON

{
  "mcpServers": {
    "thrivestack": {
      "url": "https://api.app.thrivestack.ai/mcp"
    }
  }
}

Sign in

When Cursor shows ThriveStack as needing login, click Connect, sign in to ThriveStack, and click Allow access.

Use a Personal Access Token instead

In the same MCP settings, click Add Custom MCP and paste this configuration, replacing YOUR_PAT_TOKEN with your token:

JSON

{
  "mcpServers": {
    "thrivestack": {
      "url": "https://api.app.thrivestack.ai/mcp",
      "headers": { "Authorization": "Bearer YOUR_PAT_TOKEN" }
    }
  }
}

Set the transport type to Streamable HTTP.

Connect with OAuth Recommended

Create the config file

Create .vscode/mcp.json in your project, or run MCP: Open User Configuration to edit your user-level config:
.vscode/mcp.json
```
{
  "servers": {
    "thrivestack": {
      "type": "http",
      "url": "https://api.app.thrivestack.ai/mcp"
    }
  }
}
```
Start the server and sign in

Start the server from the editor. When prompted, sign in to ThriveStack and click Allow access.

Use a Personal Access Token instead

Use the same file and add your token, replacing YOUR_PAT_TOKEN. Need a token?

.vscode/mcp.json

{
  "servers": {
    "thrivestack": {
      "type": "http",
      "url": "https://api.app.thrivestack.ai/mcp",
      "headers": { "Authorization": "Bearer YOUR_PAT_TOKEN" }
    }
  }
}

Windsurf connects with a Personal Access Token. If you don’t have one yet, create one first.

Open MCP settings

Go to Windsurf Settings → MCP.

Add the server

Click Add Server and paste this configuration (the same format as Cursor), replacing YOUR_PAT_TOKEN with your token:

MCP config

{
  "mcpServers": {
    "thrivestack": {
      "url": "https://api.app.thrivestack.ai/mcp",
      "headers": { "Authorization": "Bearer YOUR_PAT_TOKEN" }
    }
  }
}

Gemini CLI connects with a Personal Access Token. If you don’t have one yet, create one first. For general MCP setup, see the Gemini CLI documentation.

Add the server

Add this to ~/.gemini/settings.json, replacing YOUR_PAT_TOKEN with your token:

~/.gemini/settings.json

{
  "mcpServers": {
    "thrivestack": {
      "httpUrl": "https://api.app.thrivestack.ai/mcp",
      "headers": { "Authorization": "Bearer YOUR_PAT_TOKEN" }
    }
  }
}

Restart Gemini CLI

Restart Gemini CLI so it loads the MCP server.

The ThriveStack MCP server uses Streamable HTTP and works with any client that supports the MCP standard. If your client doesn’t support OAuth, send a Personal Access Token as an Authorization: Bearer YOUR_PAT_TOKEN header.

Set the server URL

Configure your client’s MCP server URL to https://api.app.thrivestack.ai/mcp.
Authenticate

If your client supports OAuth, sign in when prompted. Otherwise, make sure it can send custom HTTP headers and set Authorization to Bearer YOUR_PAT_TOKEN, using a token from your dashboard.
Start asking questions

Connect if your client asks you to, then use the ThriveStack tools from your AI tool.

Create a Personal Access Token

Needed for clients without OAuth support, and for headless or CI setups.

Open the tokens page
Go to Personal Access Tokens in ThriveStack (AI Visibility → Settings → Personal Access Tokens), or follow the link on the Connect via MCP page.
Generate a token
Click Generate new token, give it a name you’ll recognize later (for example “Cursor laptop”), and choose an expiry.
Copy the token
Copy it right away. It’s shown only once and starts with tsmcp_.

Treat it like a password. Anyone with the token can act as you across every brand your account can access.

A token acts as your user, so every request respects the same permissions as your dashboard session. You can revoke a token at any time from Personal Access Tokens; clients using it lose access immediately.

Verify your connection

After setup, try asking your AI assistant:

“How visible is yourdomain.com in AI search right now?”

You should get a visibility report for your brand. If you do, you’re all set.

Use casesReady-made, multi-step examples. PromptsBuilt-in analysis workflows. ToolsEverything the server can do.

Troubleshooting

“Authorization failed” or “Unauthorized”

Make sure you signed in with the right ThriveStack account.
Remove the connector and add it again.
Clear your browser cookies for app.thrivestack.ai and try again.
Using a token? Check that it hasn’t expired or been revoked under Personal Access Tokens, and that your client sends the Authorization: Bearer header.

Missing data

Check that your account has access to the product and environment you’re asking about, and that the data exists.

Tool not found

Available tools depend on the server version. See Tools for the current list, then reconnect your client to refresh its tool list.

Queries timing out

Ask a narrower question or use a shorter date range.

Connection timeout

Check your internet connection.
Make sure the URL is exactly https://api.app.thrivestack.ai/mcp.

Still stuck? Email support@thrivestack.ai.
